Featured Product of the Week

Digital RTX Gauges - Scout 800

Price
$2,095

Finally! Keep the classic OEM look of the IH Scout gauges but with all the updated functionality and reliability! Please note: The gauges will come without the Dash Panel and without bezels.

Standard Displays
 · Odometer (One time user settable, Million Mile)
 · Dual (A/B) Trip Meter (0- 9,999.9)
 · Clock (12 hour)
 · Estimated Range/ Miles to Empty

Performance Meters
 ·0- 60 MPH Timer (0- 100 kmh)
 ·1/4 and 1/8 mile time
 ·1/4 and 1/8 mile end speed (trap speed)
 ·High speed recall
 ·High RPM recall
Built-in Indicators
Indicators
 ·Turn Signals (Left/ Right)
 ·High Beam
 ·Check Engine
 ·Parking Brake
 ·Cruise Control (On/ On & Engaged when vehicle is equipped)
 ·Gear Position (Optional GSS-3000 sensor required)
 ·4 x 4 (When vehicle is equipped)
 ·Wait to Start (When vehicle is equipped)
 ·Two Auxiliary input indicators with user-programmable labels
 ·Each analog gauge sweep contains a red LED indicator for quick notice of a warning condition (except speedometer)



Lighting Technology

Colors
 ·Over 30 user-selectable color options allow you to independently change the needle color, sweep color and digital TFT display color.
Brightness
 ·Both daytime and nighttime brightness can be easily controlled through the RTX setup menu, allowing you to choose your preferred lighting intensity level, toggled by the activation of the headlight switch. If on-the-fly rotary type control is desired, the DIM-1 is a common accessory to add this functionality.
Themes
 ·With 12 factory preset color themes, you can quickly create a beautiful looking system. Or, for the ultimate in customization, choose all of the color zones yourself.
Technology
 ·Full LED backlighting provides a strikingly visual gauge package, with sharp contrast for ease of viewing both night and day. Full RBG backlighting allows you to create the specific color you want, with a unique daytime and nighttime theme if desired. Whether your goal is an OE look or something truly bold, the RTX Series lets you make that choice.


Included Sensors

Water Temperature
 ·1/8" NPT, ground isolated sensor with a 10 ft harness.
Oil Pressure
 ·1/8" NPT solid state sensor with a 10 ft harness.
Cable Driven Speed Sensor/ Generator
 ·Replaces GM style speedometer cables with a 10 ft harness. Sensor requires approximately 5" clearance extending between the cable drive output and any obstruction. Part # 130011 (sold separately) allows for relocation of the pulse generator when additional clearance is required. (Tremec and Ford style adaptors available on request.)
Bushings
 ·Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads.
Control Box Dimensions
5.5" x 3.5"x 1"



Calibration and Use

Pushbutton Control
 ·Dakota Digital instrument systems are programmed and operated by the push of a button. A two-sided rocker switch is included with each package; mount this switch in an easily accessible location when in the driving position. The rocker switch provide quick and consistent access to all functions, either in driving mode or while in the setup menu. Button-press feedback is available through the TFT Message Center, or through the included buzzer. Once configured, this same switch is used to access the wealth of information located in the digital message centers.

Mobile App
 ·RTX instrument systems can also be completely configured through the available mobile app, suitable to Android and Apple devices. Using your existing tablet or smart phone, download the free app, sync your device to the RTX system, and enjoy quick and convenient menu navigation and real time gauge readouts for diagnostic use or a secondary display.

Calibration
 ·All calibration settings are handled through the included pushbutton switch or the remote Bluetooth app. While many calibration settings exist, the speedometer and fuel level are completed in most cases (unless GPS-50-2 is used, negating the need to calibrate the speedometer) through a few taps of the pushbuttons and a short test drive of the vehicle.

Tech Docs & Tech Tip Videos

At Anything Scout we strive to honor the past while building into the future. All while acknowledging that these Scout vehicles we love & cherish still need constant attention, maintenence, and care from their owners.

Let us help you keep your International Harvester Scout 80/800, Scout II, Traveler, &/or Travellal running strong with our huge selection of new/used/custom parts and helpful Tech Docs and Tech Tip Videos.

Keeping Scouts on the road and dreams alive!

Whether you're doing an LS Swap, replacing a body panel or a brake cylinder, you're trying to keep the dream alive! And that's a dream all Scout owners have: Driving a unique piece of forgotten history.
... 'cuz anything less is just a car, right?

Featured Part Collections

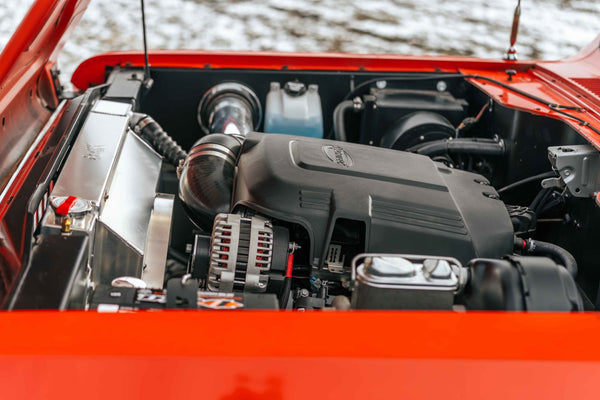

LS Parts and Conversions
